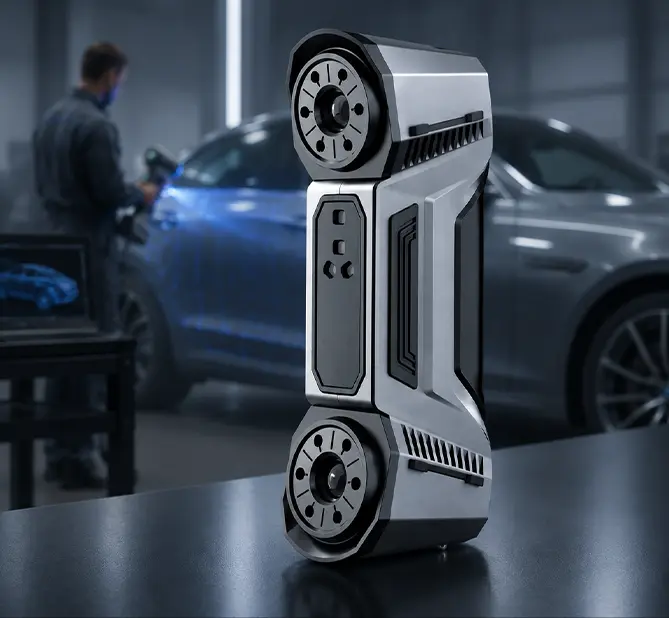

3D COMBO

DUAL-LIGHT METROLOGY 3D SCANNER

Dual Light Source System: Blue Laser + Infrared technology with multiple scanning modes for metrology-grade precision and detailed data capture.
Metrology-Grade Accuracy: High-precision scanning for 3D reverse engineering, dimensional inspection, and tolerance analysis.
Multi-Material Compatibility: Optimized for matte metals, dark surfaces, and complex industrial components.
Lightweight & Flexible Operation: Compact handheld design ensures all-day usability and compatibility with STL, PLY, OBJ formats.

Parameter		FreeScan Combo	FreeScan Combo+
Product Model		FreeScan Combo	FreeScan Combo+
Scanning Modes	High-Speed Scan	26 Cross Blue Laser Lines	50 Cross Blue Laser Lines
	Fine Scan	7 Parallel Blue Laser Lines
	Deep-Hole Scan	1 Single Blue Laser Line
	Infrared Scan (Marker-Free)*	VCSEL Infrared Light Source (Optional)	VCSEL Infrared Light Source
Maximum Accuracy	0.02 mm
Volumetric Accuracy	0.015 mm + 0.035 mm/m
Point Distance	0.01 mm - 10 mm (adjustable)
Maximum Scanning Speed		3,500,000 points/s	5,370,000 points/s
Maximum Scanning Area	1000 mm x800mm
Reference Distance	300 mm
Scanning Depth	550 mm
Laser Class	Blue Laser Class II (Eye Safe)
Data Transfer	USB 3.0
Input Voltage / Current	12V, 5.0A
Operating Temperature	-20°C ~ 40°C
Operating Humidity	10% RH ~ 90% RH
Certifications	CE, FCC, ROHS, WEEE, FDA, UKCA, IP50
Recommended Computer Configuration	System: Win10 and above, 64-bit; Graphics Card: NVIDIA series, RTX 4060 or above; RAM: 8 GB; CPU: i7-13700H and above; Memory: > 64 GB
