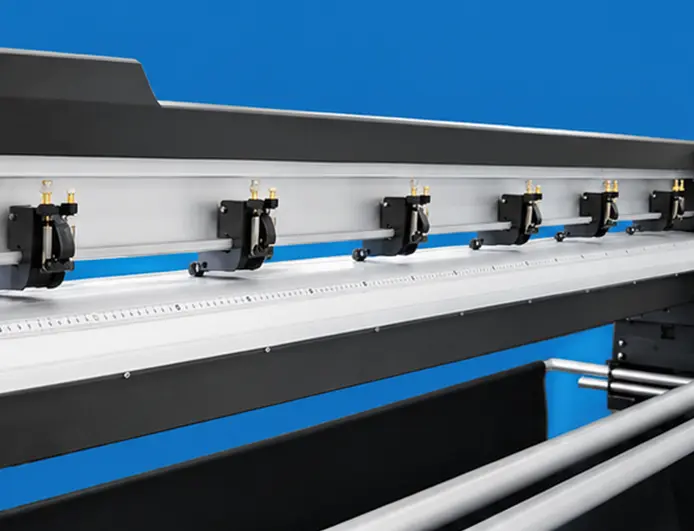

Advanced height-sensing technology automatically detects and compensates for uneven table surfaces. This ensures consistent cutting depth and pressure across the entire work area, improving finish quality and reducing material waste.

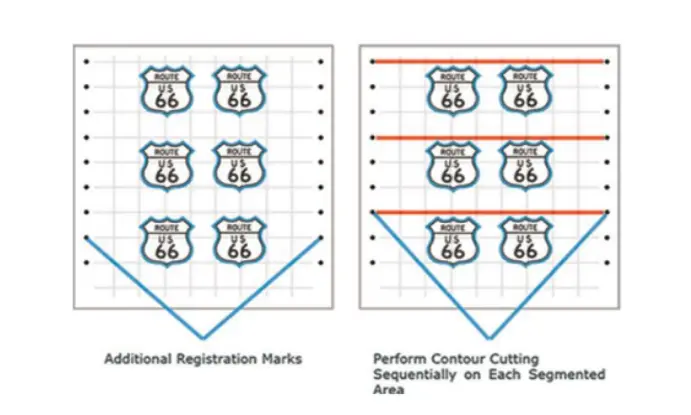

Our proprietary segmented recognition technology effectively eliminates deviations that occur when extracting large-format or high-volume outer contours. Sequential segmented cutting means the machine recognizes one segment and cuts it immediately before moving to the next — a flexible processing method that reduces cycle time compared to traditional workflows and significantly improves overall cutting efficiency.
| Parameter | Specification |
|---|---|
| Maximum Cutting Width | 1630 mm (without CCD positioning system); 1520 mm (with CCD positioning system) |
| Maximum Material Width | 1780 mm |
| Minimum Material Width | 70 mm |
| Maximum Cutting Speed | 800 mm/s |
| Maximum Cutting Force | 450 gf. 8 levels |
| Pressure Adjustment | Adjustable in 1 gf increments |
| Dotted Line Cutting Function | Supported |
| XY Axis Drive Motor | Servo Motor |
| Mechanical Accuracy | 0.0125 mm |
| Minimum Font Size | 3 × 3 mm |
| Compatible Operating System | Windows 10 / 8 / 7 / XP |
| Memory | 2 MB |
| Software | Windows Driver, SignWorkPro, CADtoPlotPro |
| LCD Display | Chinese / English |
| File Formats | HP-GL, PLT |
| Data Interface | U Disk, USB, RS-232 |
| Position Recognition | CCD Camera Recognition |
| Input Voltage | AC 90V-240V, 50-60Hz |
| Power Consumption | 120W |
| Blade+Pen Holder Quantity | 1 Blade Holder, 1 Pen Holder |
| Blade Diameter | 2.0 mm |
| Blade Angle | 30°, 45°, 60° |
| Drawing Pen Types | Water-based Pen, Oil-based Pen |

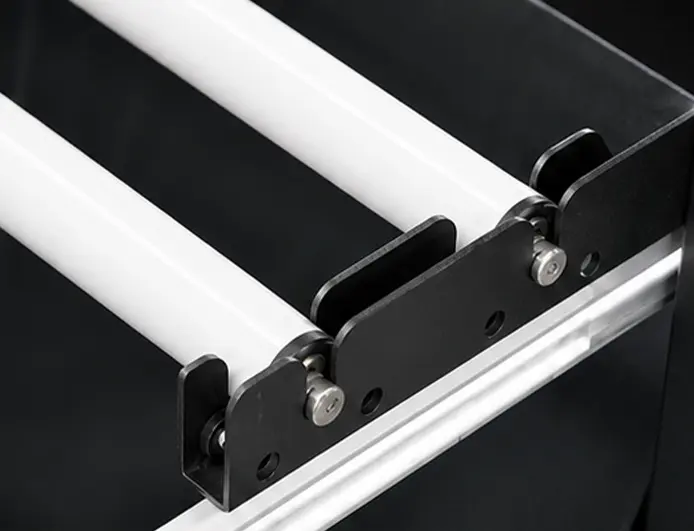

| Material Rack | Standard |
| Material Basket | Optional |
| Package Dimensions (L/W/H) | 2200 × 400 × 570 mm |
| Net Weight / Gross Weight | 85 / 57 kg |
